Jacuzzi® Jet HTC Directional Complete B785945

Write a Review

SKU:: B785945
UPC:
MPN:: B785945
Availability:: B785945

Now: $58.77

RRP: $98.88

Description
Warranty Information
0 Reviews

Description

DSICONTINUED see B785940

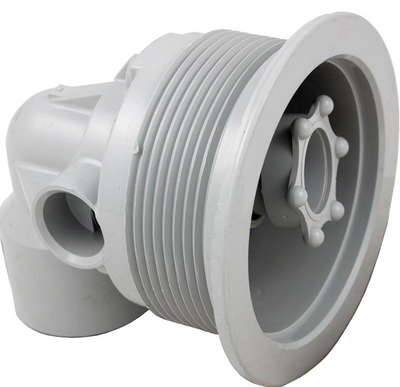

This complete, directional HTC Jacuzzi® jet part B785945 replaces the old 2000-164 which are no longer available.

Complete Jacuzzi® Whirlpool HTC, 3-1/2"hole size required, Directional, Smooth, Silver with 1/2"slip air connection and 1 1/2"slip water connection.

Hole Size Required	3-1/2"
Assembly	Complete Jet
Air Connection Size	1/2"
Air Connection Type	Slip (s)
Water Connection Size	1-1/2"
Water Connection Type	Spigot (spg)
Manufacturer	Jacuzzi® Whirlpool Bath
Model	HTC
Color	Silver
Internal Type	Directional
Face Style	Smooth
Face Diameter	4-1/4" diameter across front

2	Nozzle, JWB HTC, Fixed, White	B786940
3	Gasket, JWB HTC/AMH, Clamp Ring	1840000
4	Clamp Ring, JWB HTC, Almond	B788914
5	Screw, JWB HTC, 6-19 x 1/2"	9356000
6	Plug, JWB HTC, 1/2" Spigot	T471000
	Compensator Ring, Wall Thickness, JWB HTC/AMH	1836000
	Nut, Jet Body, JWB HTC/AMH	1835000
9	Jet Cmplt,Jac Whirl HTC,3-1/2"hs,Dir,Smth,Wht,a1/2"s,1 1/2"s	B785940
9	Jet Cmplt,JacWhirl HTC,3-1/2"hs,Dir,Smth,Slvr,a1/2"s,1 1/2"s	B785945

Jacuzzi Whirlpool Bath HTC Series– Replacement Parts
Hole size 3-1/2"
Please Note: These jets have been redesigned and no longer require the clamping ring gasket. If you order a complete jet it will not come with a clamping ring gasket.
