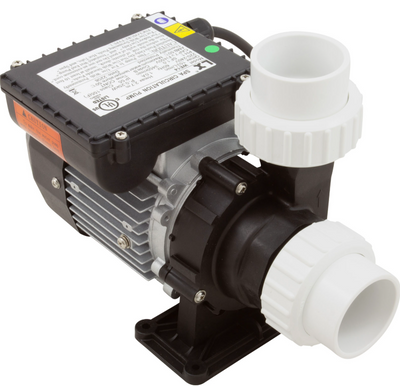

LX Circulation Pump 10-WE14-240 230V 1-Speed 1 1/2 Inch Plumbing

10-WE14-240 is a 230 volt 1-speed circulation pump that connects to 1 1/2 inch plumbing (about 2 7/16" across pump threads).  230v, 1 amp circ pump for hot tubs includes AMP cord and unions.

1/4HP single speed LX WE14 pump.  Free shipping. Includes 1 1/2 inch plumbing unions with o-rings.

Horsepower              1/4 HP
Voltage    230 V
Speed    1 Speed , 3450 rpm
Frame Size     48Y
Amps    1.0 A
Intake Size    1-1/2" MBT (2 7/16" across pump threads)
Intake/Suction type:  Center
Discharge Size    1-1/2" MBT (2 7/16" across pump threads)
Discharge Type    Side

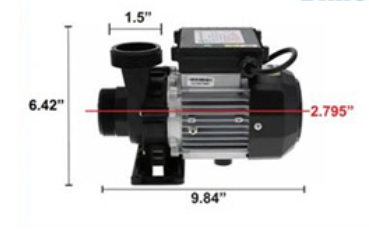

Pump dimensions: 9.84"L x 6.06"W x 6.42"H

Replaces WE14, WE14-240 and WE14-230.

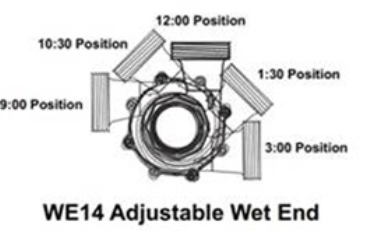

Features an adjustable wet end to line up with existing plumbing:


In order to rotate pump you must remove the foot pad (A small pry bar may be required to get it off the first time) Remove the four screws on front of pump. Once rotated to the desired location you can reattach the foot pad on the now bottom of the pump.

We also offer a union adapter to adapter plumbing from 1 1/2 inch to 2 inch plumbing if needed, see: 50100130

This pump also available in a 120v version, see WE14-120
