Pump Seal Kit PS-200 Jacuzzi® Carvin Shaft Seal Assembly

Write a Review
SKU:
PS-200
MPN:
PS-200
Shipping:
Calculated at Checkout
  • PS-20
  • ps200 seal kit for pumps
  • Pump Seal Kit PS-200 Jacuzzi® Carvin Shaft Seal Assembly (PS-200)
  • Pump Seal Kit PS-200 Jacuzzi® Carvin Shaft Seal Assembly (PS-200)
  • Pump Seal Kit PS-200 Jacuzzi® Carvin Shaft Seal Assembly
Now: $12.77
RRP: $14.88

Description

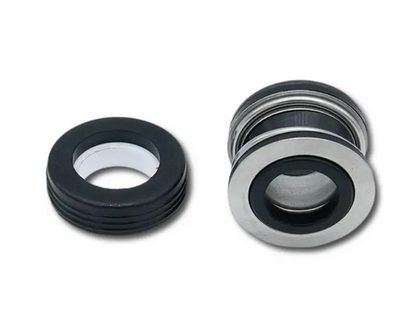

Spa pump seal kit PS-200 is a popular replacement for select pumps including Aquaflo, Gecko, Jacuzzi and other brands.

5/8" Shaft, 1.218" Seal OD, 1.250" Seat OD kit.

Replaces Jacuzzi® Bros./Carvin Shaft seal assembly PS-200 and is a quality pump seal for Aquaflo and select Jacuzzi® pumps.

PS-200 pump seal kit:

Shaft Seal Head Type A
Pump Manufacturer AquaFlo/Gecko, AquaFlo/Val-Pak, Astral, Hayward, Jacuzzi, PacFab/Pentair, Pentair, Speck Pumps, Sta-Rite/Pentair, Waterway
Pump Model A Series, A91, BADU Pro, Booster Pump 5060, Booster Pump 6060, Cast Iron Pump, Challenger, CMCP, CMHP, CMXP, Cygnet, Dominator, Dynamo, Dynatron, E Series, ES90, ES90-II, EX2, FMCP, FMHP, FMVP, FMXP2, FMXP2e, FMXP3, HiFlo II, Iron Might, J Series, JCM Series, K Series, KM Series, LCM Series, LCU Series, LH, LPC, LPH, LR, Max-E-Glas/Dura-Glas, MaxFlo II, MaxFlo VS 500 Omni, MaxFlo XL, OptiFlo, Pinnacle, Sena, Spa Flo II, Splash Pak K, SuperFlo, Supreme, Waterfall Specialty Pump
Quality/Material Good - Buna Graphitic Plastic
Shaft Size 5/8"
Seal Outside Diameter 1-7/32"dia
Seal Height 13/16"
Mating Ring Diameter 1-1/4"dia
Mating Ring Thickness 13/32"
US Seal Basic Equivalent PS-200

PS-200 or USSPS-200.

pumpseal buna



Need a dab of lube? See LUBE-PP.

Replaces 5250-104 as well as 10-0002-06 , 10-1390-20-R , 10000206 , 17304-0100S , 200 , 222695 , 231916 , 30-0048 , 319-3010B , 3250-A08 , View More 35-4545 , 354545 , 354545S , 368768 , 449259 , 449260 , 5063-09 , 5250-104 , 600065 , 601281 , 601402123818 , 606407 , 632261 , 788379787851 , 92500150 , 92500151 , 950956 , APCAS200 , APCAS4702 , APCUS200 , AS-200 , PS-1901 , PS-3867 , PS1901 , PS200 , PS3867 , SPG-60-0200 , USS-60-5021 , USSPS200B , VG-200.

5/8" Pump Shaft Seal Kit PS-200 AS-200 VG-200 5250-104

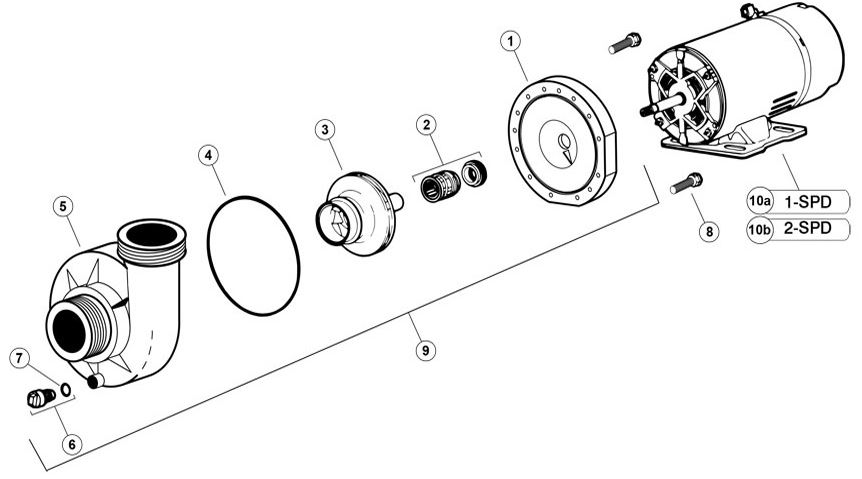

1 Seal Plate, Jacuzzi Piranha/TheraMax/TheraFlo 02-1684-09-R
2 Shaft Seal, PS-3867, 5/8" Shaft , Viton PS-200 PS-3867
2 Shaft Seal, PS-200, 5/8" Shaft, Buna PS-200
2 Shaft Seal, PS-1901, 5/8" Shaft, Silicon Carbide PS-200 PS-1901
3 Impeller, Jacuzzi Piranha, 1.5 Horsepower 05-1500-15-R
3 Impeller, Jacuzzi Piranha/Thera-Max/Thera-Flo, 2Horsepower 05-2000-20-R
3 Impeller, Jacuzzi Piranha, 2.5 Horsepower 05-2000-25-R
3 Impeller, Jacuzzi Piranha, 3.0 Horsepower 05-3000-30-R
5 Volute, Jacuzzi Piranha/TheraMax/TheraFlo 03087203R
8 Screw, Jacuzzi, 10-12 x 1" 14-4379-02-R
