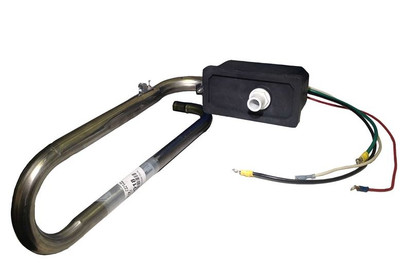

Therm Products 5.5KW 120/240V Spa Heater C3548-1

5.5KW, 120/240V Dual Element (Laing 6144). Replacement Option For: Dimension One Spa Laing 6144.

This spa heater is made by Therm Products and is ideal for use in hot tub spas.

Voltage    230
Features    w/Thermal Cut-Off
Heater Type    Low Flow
Heater Wattage    5.5kW
Inlet Size    3/4" Barb
Outlet Size    3/4" Barb
Type    Standard
Spa Brands    Dimension One

Heater Assembly, D-1, Proportional Fast-Flo, 5.5kW, (2.1/3.4 Dual Element) 230V, with Thermal Cut-Off.

Replaces
01781-27 (Dimension One)
26-C3548-1-7T-K
73009
61443
6144.3
6144
SEH-5500-NH
SEH550-NHC-7300
SEH5200-NH-6757
SEH-5500-NH-6144
SEH-5500-NH-61443

We also offer recommended installation parts as needed:
425-1000

01710-130 flow switch

6541-075 barb adapter 3/4"

DW-17ST-ZD clamp for 3/4 and 1 inch

Get all your replacement heater assemblies from Hot Tub Outpost. The largest replacement heater stock in the West.

Replacement pressure switch instructions -Instructions to install a mechanical flow switch to replace electronic flow
switch from an E-10 circulation pump  (2009-2014)  Reflections models.   See attached Tech Tip.

Or save with 4kw heater 26-C3548-1-7T-K
