3HP Spa Pump Waterway Endurance 2-Speed 56FR 230V 2-Inch

Waterway Advantage "Endurance" 3 HP Spa Pump 230v, 56 frame with 2 inch plumbing connections

This 3 HP 2-speed replacement spa pump operates at 230 volts and is a 56 frame size pump.

The 3HP replacement spa pump connects to 2 inch plumbing on both sides (measures 3 1/16" across pump threads for connection to 2 inch inner diameter flex hose or pipe in hot tub plumbing).

Free Shipping in the continental U.S.A.

Brand new 56 frame motor paired with a Waterway brand wet end for reliable, long-term performance. Includes Unions and O-rings.

1 Year Manufacturer's Limited Warranty

This 2" x 2" side discharge, 56 frame spa pump is one of the best values for replacement spa pumps today and is available online at direct discount prices from Hot Tub Outpost.

Endurance Waterway pump specifications

• 3HP spa pump with Waterway wet end
• Side Discharge
• 230 volts
• High Amps: 10 amps
• Low Amps: 3.4 amps
• 2" in and out connections
• 3450/1725 RPM
• 2 Speed Pump

Can replace Executive 56 3HP 2-speed, 230v, side discharge, 2" in/out spa pumps.

Need a different pump? We've got 'em all. Contact us for assistance as needed.

Does not come with pump cord, so you can use your existing pump cord if it is serviceable or purchase a new cord depending on what type of connector you have (AMP white 4 pin plug, gray J&J connector, J&J mini connector..)

Need a 2-speed AMP cord? See 22-0070-48

Wet End Rotation

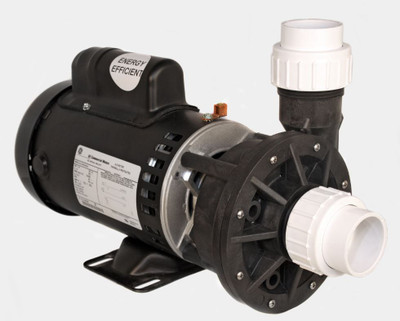

If needed, the wet end can be rotated in 90% increments to line up with existing plumbing. For increments to meet your installation requirements. Loosing the pump four thru-bolts from the back of the motor and pull them out 1/4 of an inch. You need to disengage them from the wet end. Then rotate the wet end to your desired position, realign and re-tighten the bolts back in.  The standard orientation is side discharge facing upwards as in the picture.

Or see the LX 3HP 230v Pump 56WUA300-II
