60A GFCI Load Center Disconnect Box 120v 240v DPST 60 Amps

Write a Review
Calculated at Checkout
  • 60A GFCI Load Center Disconnect Box 115v 230v
  • 60a load center
Now: $587.97
RRP: $646.99


60a load center spaWall mounted GFCI disconnect box load center with GFCI included for 115v and 230v hot tub installations  This is the 60Amp version with a factory installed 60a GFCI inside the box.

Double Pole Single Throw (dpst) GFCI type. Voltage is 115v/230v and amperage is 60a.

Complete box with GFCI features factory installed 60 amp ground fault circuit interrupter (GFCI) plus two 1" spaces, four circuits max.

Use to connect spas, hot tubs, pools and more. 125A spa panel with 60 amp GFCi included.

Spa Box with GFCI Protection Features:

  • 240 Volt Ground Fault Protection
  • UL listed, Type 3R Enclosure (rainproof)
  • Easy installation
  • 2 Pole, 60 amp GFCI breaker protection
  • Dimensions: 8-1/2” Height x 7-1/2” Width x 3-3/4” Depth
  • 3 or 4 wire installation
  • 120/240 VAC
  • 2 extra one-pole breaker spaces
  • Outdoor enclosure type 3R
  • 100 amp overall rating

panel insideSub Panel Breaker Enclosure Features:

  • Use as a 100 amp, 4 circuit sub panel enclosure
  • Line and Load Connector Wire Range:
    • CU: #14-1/0

    Ground Connector Wire Range:

    • CU: #14-1/0

    (also rated for AL but not recommended)

This GFCI load center for hot tubs is the 60 amp version with double pole single throw GFCI.  Also available in 50 amp version.  Need 40a or less? We have those too.

GFCI Type Load Center Complete
Mounting Wall Mount
GFCI Amperage 60A
GFCI Style Double Pole Single Throw (dpst)
Voltage 115v/230v
Manufacturer Siemens

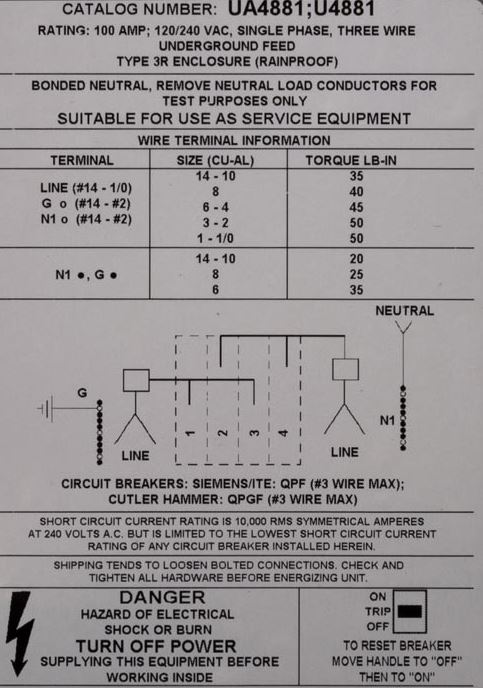

outdoor gfci ratings


Or see the lower cost Siemens brand GFCI 60a spa GFCI60AMKIT
