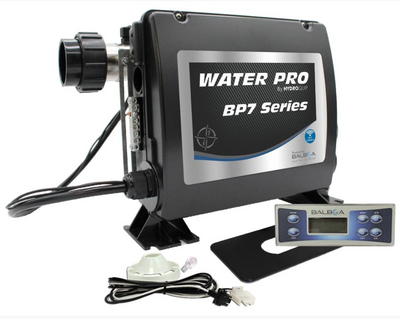

BP7-500 Control System 4.0kW Slide Heater TP500 50-BP7-500-40-S

BP7-500 Control System 50-BP7-500-40-S replaces 50-BP7-500-5S-K and  is part of the water pro series of systems.  This control system includes the 4.0kW slide heater and the TP500 control panel with overlay.

BP7, Water Pro, Slide Htr, 4.0Kw, w/TP500.

Featuring a 4.0 kilowatt slide heater.

Includes a TP500 topside control panel.

Replaces Systems: 50-BP5-500-5S-K, 50-BP5-50E-5S-K

*BP7 Series Systems Replace Old Model BP5 Series Systems**

Standard Features:

• With 4.0KW Slide Heater
• 12V Light Assembly
• M8 Technology Equipped
• Topside Control – TP500
• All Circuits Convertible to 120 or 240VAC
• Amp Receptacles
• Freeze Protection
• Easy To Install & Service
• Installation Kit (see below)
• Detailed Owner’s Manual & Wiring Diagram
• US and Canada UL Recognized

Electrical input spec single phase 120/240VAC 60hz.

Kit Includes:

• Topside Control
• Topside Overlay
• Topside Adapter Plate
• 12V Light Assembly
• 2” Tailpieces w/Gaskets

Brand: Balboa Water Pro Series By HydroQuip
Model: Water Pro BP7 Series
System Supports: Pump1 + Blower or Pump2
System Voltage: 115/230V
Heater Version: Slide Heater
Heater Wattage: 4.0kW
Topside Included:TP500
Special Features: Circulation Pump = Supported, Wi-Fi Capable
