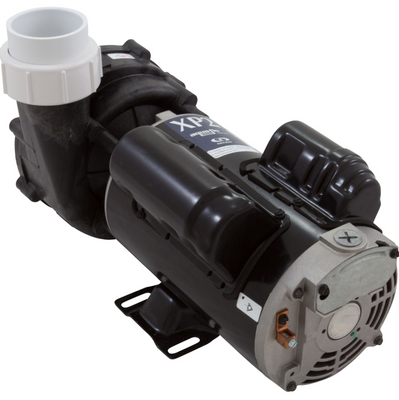

Coleman 2.5 HP 230v 2 Speed 103698B XP2E Gecko Pump

Gecko XP2e Coleman 103698B 2.5 Hp, 230 Volt, 2 Speed, 56 Frame Spa pump.

This is a side discharge type pump.  This is the currently supplied, factory original XP2 style pump for select Maax Coleman spas by Aquaflo to replace the discontinued pumps.

2 inch suction and discharge plumbing connections for 2 inch inner diameter flex pipe or hose.

Free Shipping. On sale now.

Used In Coleman Spas, 2002+. 2002: 509 547 548 550 555 605 705TL 706TL 2003 Deluxe:361 470 471 472 2003 Base: 461 2003 Aeromaax: 470 471 472 605 705 706 2004 Deluxe:351 361 470 471 472 2004 Base: 461 2004 Aeromaax: 470 471 472 705 706 2005 Deluxe:351 361 470 471 472 2005 Base: 461 2005 Aeromaax: 470 471 472 705 706 2006 -106 Deluxe:351 470 471 472 2006 Base: 461 2006 Aeromaax: 470 471 472 705 706 M6 2007 & 2008-106 Deluxe:351 470 471 472 2007 & 2008Aeromaax: 470 471 472 705 706 M6

8.9 amps high speed and 3.0 amps low speed , replaces older pumps that may have amp ratings such as 8,4 amps hi speed and 2.7 amps low speed.

This corresponds to the published 2.5HP rating brake torque horsepower which is the same as 2.0 HP continuous duty.
