Gecko Y Series Control System CS9704Y-LF-3W 3 Wire With K8 Topside

HydroQuip Gecko Y Series Control system CS9704Y-LF-3W 240V Only through 3 wire with no neutral and with Lo-Flo Heater and includes K8 spaside control panel.

This Y series control system is capable of running a 3 pump system.

Operates at 240 Volts ONLY.  Includes the 4kw low flow heater.

Includes a Lo-Flo Heater and a K8 Spaside control panel.  This bundle also includes an installation kit with component cords, flow switch tee assembly, 3/4 inch clear tubing, clamps, the 12v light assembly and even a 3/4 to 1 inch barb adapter.

Built on the Yt-7 platform and can operate a 2-speed pump 1, 1 or 2 speed pump 2, 1 speed pump 3 and a 1 speed blower.

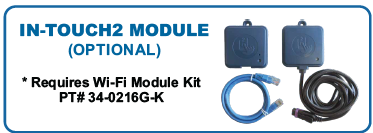

Can also operate a circ pump as needed for the low flow system and is wifi ready (add optional in-touch2 module for wifi functionality)\

Wi-Fi Enabled* Add Wifi 34-0216G-K

1.0/4.0kW Lo-Flo Slide Heater Assembly

Spaside Control
12V Light Assembly
Heater “ON” Indicator Light
Titanium Low Watt Density Heater Element
3/4” x 1” Barb Adapter
Smart-Freeze Protection
Flow Switch Protected
Installation Kit (see below)
Detailed Owner’s Manual & Wiring Diagram
US and Canada UL Recognized
2 Year Warranty
*Requires optional Wi-Fi Module
Laing or Grundfos Circulation Pumps
Export Wattages Available

Control box dimensions 22.5”W x 14.75”H x 7”D

ELECTRICAL INPUT SPECIFICATION: SINGLE PHASE,120/240VAC, 60HZ
ELECTRICAL OUTPUT SPECIFICATION:
CIRCUIT(S) MAXIMUM AMPS
PUMP(S) 13A
BLOWER 8A
OZONE 2A
CIRCULATION PUMP 5A
LIGHT 1A
HEATER 23A
