LX Circ Pump 48WTC0153C-1 48WTC Circulation Pump 1 1/2 Inch

Write a Review
SKU:
48WTC0153C-1
MPN:
48WTC0153C-1
Availability:
In-Stock - 48WTC0153C-1
Shipping:
Calculated at Checkout
  • LX circ pump 24 hour
  • LX Circ Pump 48WTC0153C-1 48WTC Circulation Pump 1 1/2 Inch
  • LX Circ Pump 48WTC0153C-1 48WTC Circulation Pump 1 1/2 Inch
  • LX Circ Pump 48WTC0153C-1 48WTC Circulation Pump 1 1/2 Inch
  • LX pump 48WTC0153C-1 48WTC
Now: $148.77
RRP: $229.99

Description

LX Circulation pump 48WTC0153C-1 is a 24-hour circ pump that can be operated at either 115v or 230v and replace Waterway pumps as well as Aquaflo circ pumps.

Connects to 1 1/2 inch inner diameter plumbing/hose/pipe. 48 frame circulation pump for hot tubs.

On Sale Now!  Free Shipping too!

This circ pump also replaces CMHP  Aquaflo 1/15HP circ pumps.
1 speed 48 frame 1-1/2" inlet 1-1/2" discharge pump

This circulation pump includes the 2x unions and o-rings as well.

This high quality spa circulation pump is heavy duty with a side discharge.  It includes 2x pump unions and o-rings too!

In Stock - ships out same day when ordered before 3pm Central M-Sat.

Free shipping in the continental USA on this original LX circ pump. - No handling fee, no tax (except TX)

Great deal on a 24 hour circ pump - compare with Waterway and Aquaflo.  1 Year factory warranty.

Dual voltage circ pump works at either 115V or 230V.

Ships as a 230v pump (0.8 amps) - see instructions included with pump for correct hookup if using as 120v pump (1.6 amps).  Your installer will need to move the indicated wire on label to convert.

circ pump base LX
This circulation pump comes with mounting base.

1/15HP circulation pump draws 0.8 amps at 115V or 1.6 amps at 230V.

Circ Pump specs:

Frame Size: 48 frame
Voltage: 115V/230V dual voltage
Amperage: 1.6a/0.8a
Horsepower: 1/15HP
RPM: 1725
Intake: 1-1/2"
Discharge: 1-1/2" Side Discharge
1 Year Factory warranty
1 Speed

Dimensions: 12-7/8"L x 7"W x 8-1/4"H

Need a barb fitting adapter? See BARB14X38 that only works with LX pumps.

We also offer pump union adapters 52202100

Pump Details:

This 24 hour circulation pump replaces following 120v spa pump models: discontinued 02093635-2 replaced by 02093000-2010, 02410362-2,02093644,321810,X321790,02093637-2,02093460-2,02410433-2,02093636-2.

This pump is an identical match for the Aqua Flo / Gecko circulation pump.  Replaces 02093012-2510 (Dynasty Spas),14154,1-00-0053, 02093695-2, 02410512-2 (Aqua-Flo), 14154 (Gecko), 6500-907 (Sundance), 34-402-1140, 6000-907.

Also replaces these 230v circ pumps with modification: 02408492-2,02408492-2510,02403466-2, 02093634-2, 02093695-2,02093638, 02403695-2,02093759-2,48WTC0153C-I,02403004-2,02403649-2,02407002-2,02593001-2010, 6000-907,SUN6000-907,6500-907,SUN6500-907,circ master HP 550112 and other Aquaflo and Waterway circulation pumps.

 Comes factory configured for 230 volt operation.  To use as a 115v (110v-120v) circ pump, move the included pump cord wire connections as per below:

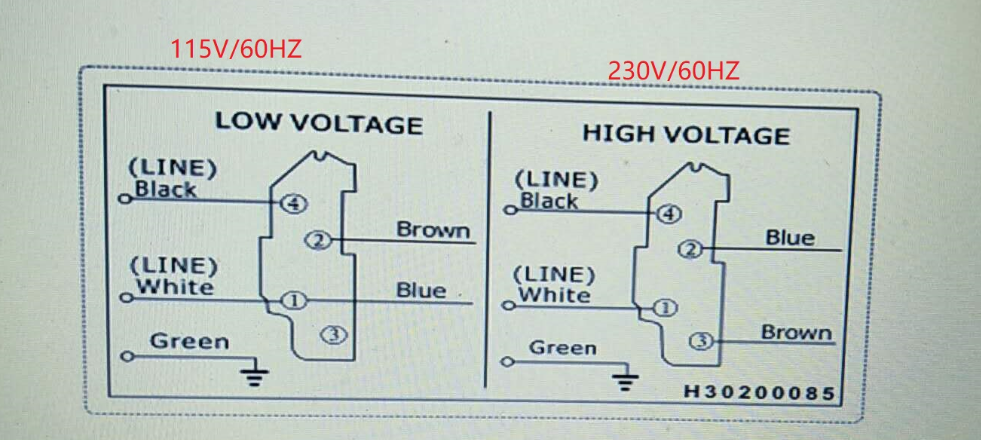

voltageconnection lx

VOLTAGE SELECTION: Configuring pump for 115v operation (factory configuration 230v and diagram marked on unit label)

Pump usually comes configured for 230 volt operation unless otherwise marked.  To switch to 115 volt operation (110v-120v) 2 wires need to be moved - see instructions included with pump and on the pump itself for proper wire locations.
Low Voltage on the diagram refers to 115v (which is not really low voltage, just lower voltage) and High Voltage on the diagram refers to 230 volt setup.

SETTING UP FOR 115 Volt OPERATION
To operate at 115v, your installer will follow the Low Voltage diagram and remove the blue wire (pull up with pliers) and move to the open terminal next to the white wire.   Then move brown wire up to where the blue wire was. Do not move either the white or black wires, they stay where they are no matter if operating at 115v or 230v.

Walla - 115 volt operation instead of 230v. You may then want to remove the sticker on the end that says configured for 230v and mark the 115v setup in the manual included with pump.

Contact us with any questions.

LX 48WTC spa pump, 1/8HP, 115V/230V, 1.6/0.8A, 1 1/2"MBT plumbing connections, Includes Unions, Side Discharge

You may also need a barb fitting if you have a vinyl tube connected to your current barb fitting.  The barb fitting 672-4350 will screw into the pump wet end and is a recommended related product.
