Name: Vico Ultimax 2 Hp 230v 2 Speed 56 Frame Pump 5235208-S
SKU: 5235208-S
Price: 313.77 USD
Availability: InStock

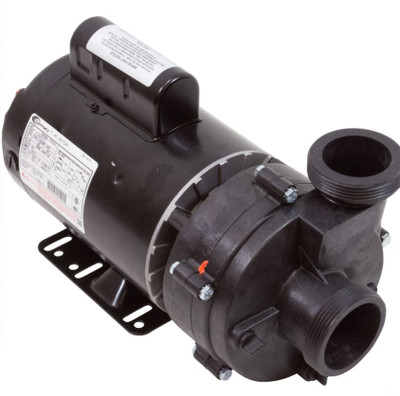

Vico Ultimax 2 Hp 230v 2 Speed 56 Frame Pump 5235208-S

Write a Review

Vico Ultimax 2 Hp 230v 2 Speed 56 Frame Pump 5235208-S

Rating Required

Name

Email Required

Review Subject Required

Comments Required

SKU:

5235208-S

MPN:

5235208

Shipping:

Calculated at Checkout

Description
Warranty Information
0 Reviews

Description

Vico Ultimax 2 Hp, 230 Volt, 2 Speed, 8.8/2.9 Amps, 56 Frame Pump and Motor 5235208-S with Free Shipping.

2 Inch Plumbing connections for suction and discharge sides (measures 3 1/16" across pump threads).

Free shipping within the continental USA.

Pump Specs

Manufacturer	Vico/Balboa
Pump Model	Ultimax
Speed	2 Speed (2-Spd)
Suction Style	Center
Suction Connection Type	Male Buttress Thread (mbt)
Suction Pipe Size	2"
Discharge Style	Side
Discharge Connection Type	Male Buttress Thread (mbt)
Discharge Pipe Size	2"
Horsepower	2.0hp
Motor Frame	56 Frame Thru-Bolt

Replaces older pumps used in Coleman Spas and other brand hot tubs.

May also be referred to as a 2.5Hp pump, however it is the amperage (8.8 amps on high speed) and not stated horsepower that determines the actual/continuous horsepower of a pump.

Replaces discontinued pump models 1016169, 1016039 (Vico) and many more.

Pump Brand: Vico

Pump Horsepower: 2.0 HP

Pump Voltage: 230 Volt

Pump Model: Ultimax

Speeds: 2 Speed

Frame: 56Y

Amperage: est 8.0 amps on high speed/3.0 amps on low speed

Discharge Location: Side Discharge

Hertz: 60

Plumbing Size: 2" MBT inner diameter plumbing (measures about 3 1/16" across the threads)

Manufacturer's warranty 365 - Warranty for 1 year from date of purchase.

Cord sold separately if needed depending on connection type or re-use existing power cord.

This pump may have been sold as a 5HP or even a 6 BHP pump by various spa manufacturers as they are referring to brake torque horsepower for marketing purposes rather than actual continuous duty horsepower. Best to compare AMP draw when comparing pumps.

Need a pump union with o-ring? See 0602-20 for pump union assembly.

Need just the o-ring? See O-43

We also offer the 2-speed pump cord with AMP connector if needed - see 30-1001C.

There is also a molded type cord (mini JJ) - 30-0220-48-K.

If you need 2 1/2" suction size plumbing, note that model is discontinued in an Ultimax pump, but you can use adapter 415-6010 and o-ring O-301 as needed.
