Waterway Tiny Might Circulation Pump 1 Union 115v 3312610-14

Write a Review
SKU:
3312610-14
MPN:
3312610-14
Shipping:
Calculated at Checkout
  • Tiny Might circ pump 3312610-14
  • Tiny Might pump with union
  • Tiny Might Circulation Pump 1 Union 115v 3312610-14
Now: $248.77
RRP: $308.28

Description

tiny might circ pumpWaterway Tiny Might Circulation Pump 1" union, 1/16hp, 115v 0.8 amp. 18 gallons per minute, 24 hour, single speed circ pump. 3312610-14.

Threaded connection for a one inch union, or doubles as a 1/2 inch slip connector.

Now shipping latest version of this 115 volt Tiny Might Waterway circulation pump.

1/16HP, 115V, .8A, 1-Speed, 14-18GPM, 1"MBT, Less Unions

Free Shipping.


Features-

-Larger, 303 stainless steel, 3/8” motor shaft improves impeller stack-up height.

-Larger motor bearings for longer motor life.

-Larger motor housing improves ventilation and keeps motor running cooler.

-New wet end made of state-of-the-art thermoplastic material.

-Larger back end wire-casing protects wire connections and improves ventilation.

-Higher capacitor rating allows easy starting when low voltage is encountered.

-Cast and machined front motor casing aligns wet end center to motor shaft.

-Designed for 24 hour circulation.

-Energy efficient (uses less power than a 100W light bulb).

-1” union.

Specifications-

Horsepower- 1/16

Voltage- 115

Amps- 0.8

Intake and Discharge- 1" MBT

Flow Rate- 14-18 GPM

Frame Size- 15mm

Uses less power than a 100W light bulb. Available in 1 inch barb or 1 inch union style. This is the 1 inch union one (that also has 1/2" slip connection inside).

Larger 303 stainless steel, 3/8” motor shaft improves the impeller stack-up height and the larger motor bearings mean a longer motor life. Improved ventilation keeps the motor running cooler too.

Wet End Can Be Rotated 90 degrees Right or Left.

This Tiny Mite circ pump is made in the U.S.A. and replaces models 300-9000 , 3312610-14 , 3312610-1401 , 611556 , 806105065919 , 9330-23 , WWP33126101401.

Great low flow spa pump with high volume and very quiet.

This 24-hour spa circulation pump features a side discharge for optimum flow and efficiency as well as a rotatable wet end so it can easily line up to your existing plumbing. This is a 6 1/2" diameter wet end for higher head pressure.

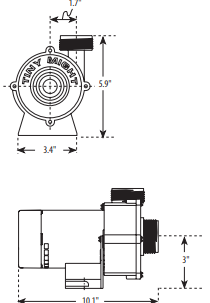

connectionsuniionstinymightThe dimensions are 5.9" x 3.4" x 10.1".

The amperage is 0.8a and it has male buttress thread and slip connection on discharge and suction side.

The connections are 1 inch union for 1 inch plumbing.

This is a 1/16 HP spa circ pump that operates at 115 volts and is single speed.

Unions sold separately.

Wet end can be rotated to line up with existing plumbing.

This one comes with 2 little pigtail connectors with tabs. Cord sold separately as needed (AMP, JJ, NEMA 813-0032..)

flow-rate-chart-tinymight



Tiny Might circ pump also replaces TM-0061N11C,3312610-14,9330-23, 34-270-1000,3312610-1401,WW331261014,15-350-2258,331261014,TM0061N11C

Note this 3312610-14 has 1" union x 1" union plumbing connections.

tinymightspecs

Shipping latest Tiny Might 115 volt, 8amp circ pump with 1 inch mbt threaded connections.

Need unions? we offer 1 inch unions as well see 400-1940 1 inch fbt x 3/4" barb, or 400-1990 1 inch fbt (female buttress threaded) to 1 inch slip for 1 inch plumbing.



Replaces 300-9000 and 1-00-0088
TM-0061N11C
3312610-14
9330-23
34-270-1000
3312610-1401
WW331261014
15-350-2258
331261014
TM0061N11C

View AllClose

Warranty Information

1 Year Manufacturer's Warranty
