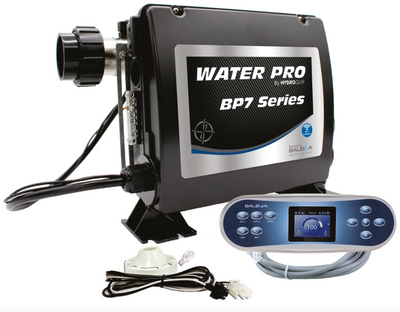

BP7 Control System 50-BP7-700-40-S with TP700 and 4kW Slide Heater

BP7 Control System 50-BP7-700-40-S Water Pro retrofit kit with TP700 Topside.

This BP7-700 Water Pro Series control system replaces the old model BP5 series system as well.

This control system features a 4.0 kilowatt slide heater.

Includes a TP700 Spaside control panel with overlay included.

Standard Features:

• With 4.0KW Slide Heater
• 12V Light Assembly
• M8 Technology Equipped
• Topside Control – TP700
• All Circuits Convertible to 120 or 240VAC
• Amp Receptacles
• Freeze Protection
• Easy To Install & Service
• Installation Kit (see below)
• Detailed Owner’s Manual & Wiring Diagram
• US and Canada UL Recognized
System Dimensions  15" x 12" x 6" ,  weight 19lbs.

Input single phase 120/240VAC 60hz
Output max amps for pumps 12a, blower 4a, heater 16a/23a, circ pump 2a, light 2a
Required flow rate  25 gpm

Kit Includes:

• Topside Control Panel
• Topside Overlay
• Topside Adapter Plate
• 12V Light Assembly
• 2” Tailpieces with Gaskets

HQ LIMITED WARRANTY:
• 2 years from sale date to consumers

Add Accessories:

Need a wifi module? See 50350

We also offer a LED light bulb 37-0014-L

Add an ozonator, see 34-2922-AMP
