Sundance Spa 2.5HP 240v LX Pump 2-Speed 56 FR WUA400-II 6500-367

Write a Review
SKU:
6500-367
MPN:
6500-367
Shipping:
Calculated at Checkout
Now: $538.99
RRP: $584.49

Description

Sundance Spas 2 1/2HP, 230 volt, 2-speed, 56 frame spa pump 6500-367 or 6500-367S used in 08/2010 and newer Burlington, Camden, Certa, Chelsee, Hamilton, Hartford, Hawthorne. 2011 and newer Constance and Victoria spas.

COMPLETE Motor and Wet end. This baseless pump INCLUDES the motor mounting bracket SUN6000-535 and free shipping in the continental USA!

See below for best deal.

Includes the mounting bracket.

This 6500-367 model - LX pool and spa pump WUA400-II is a 230v/60hz pump in the larger 56 frame size and is also used by other hot tub manufacturers.

  • 2 1/2HP
  • 230 Volts
  • 2-Speed
  • Low Speed Amps: 4.4a
  • High Speed Amps: 12a
  • RPM 3450/1725
  • 56 Frame

This ETL listed spa pump conforms to UL standard 1081.

The pump bracket is also included (56 frame bracket).

Check frame size before ordering, this is the 56 frame pump, not the smaller 48 frame.

lx pump replacementpump bracket included



Used in Burlington, Camden, Chelsea,Hamilton and Hawthorne spa models and in Jacuzzi 2011 and newer J-230,J-270,J-280 ,J-335 through J-375.

Or SAVE with generic pump  56WUA400-II(NF)  (also with no feet)



Need just a wet end? The parts are sold/ship separately and come unassembled if needing to replace the wet end or wet end parts - see:

 Wet End Component List

    SUN6500-606  LX 56 frame rear housing (not compatible with Emerson 56 Frame pumps)

    SUN6500-281  Seal Kit

    SUN6500-612  Impeller

    SUN6500-605  Housing O-ring

    SUN6500-604  Volute

    SUN6500-602  Drain Plugs  x2 or 3 required

    SUN6500-603  x2 or 3 required depending on how many drain plugs there are

    SUN6540-171   Free Plug Fitting if needed   x0 to 1 required

    SUN6540-263   Pump Plug O-ring If Needed  x0 to 1 required

    SUN6500-601   Self-tapping housing screws  x8 required - compatible with 6500-352, 6500-363, 6500-367 and 6500-369.

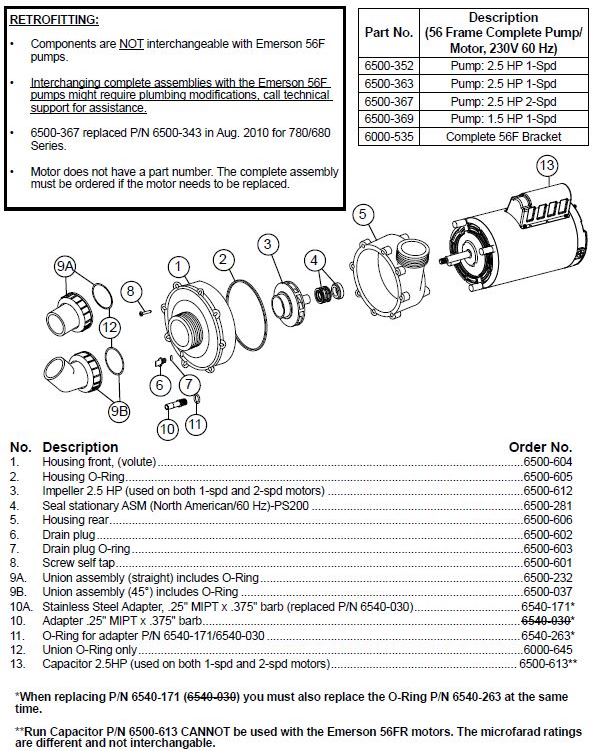

LX Pump Parts List for Sundance Spas

lx pump parts Sundance Spas

Current part number 6500-367S

SAVE with the generic pump (also rated at 12a/4.4a) - see 56wua400-ii-bl-baseless
